It can be produced between 2,000 m/h – 500,000 m/h capacity.

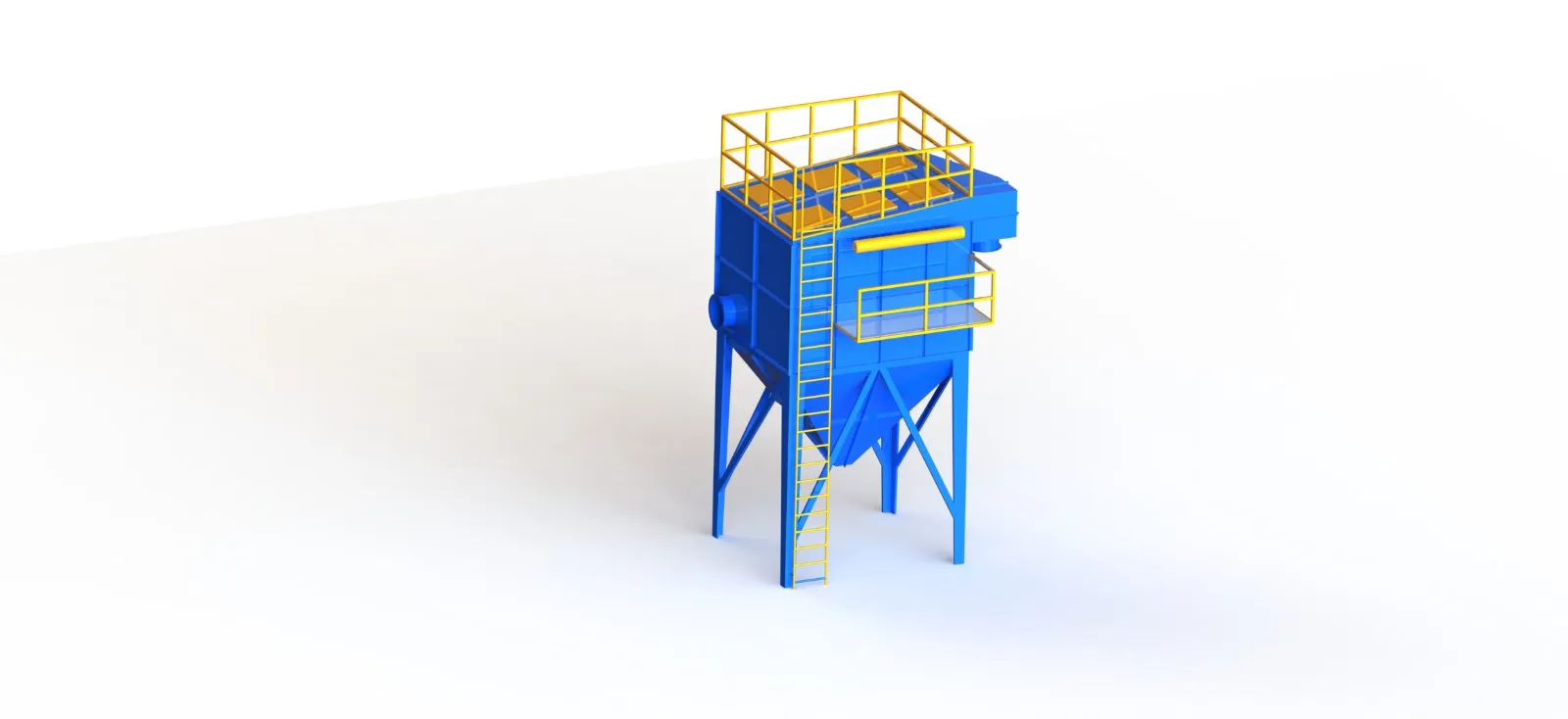

TES-SAN brand Jet-Pulse Filter System has high performance in containing all kinds of dust and oil mist.
Suitable sized pouches can be used according to the application area.
Filter internal pressure drop is lower, so it provides energy saving as it requires lower fan power.
The dust accumulates on the external surface of the filter bags placed in cages, as the dirty gas enters from the side and suction is applied from the center of the cage.
The dust accumulated on the surfaces of the filter bags is discharged into the dust collection bunker via instant pulses of compressed air.
Filter bags are cleaned with the help of compressed air, which is directed to the center of the bag via a venturi system.
The venturi reduces pressure loss and ensures uniform distribution throughout the length of the filter bag.
High-speed compressed air pulses expand the filter bag, causing the dust accumulated on the outer surface to be blown off and discharged into the bunker.

The TES-SAN Jet-Pulse Filter System is an industrial filtration system that operates within a capacity range of 2,000 m³/h to 500,000 m³/h and is highly effective in trapping all types of dust and oil vapors. The filter design provides energy efficiency with lower fan power requirements and reduced pressure drop, which leads to lower operating costs.

The filter has a lower internal pressure drop, requiring less fan power and providing savings. Dust accumulates on the outer surfaces of the bags as the contaminated gases pass through vertically arranged bagged cages. The dust collected on the bag surfaces is removed by compressed air pulses and directed to the dust bunker. The filter bags are cleaned with compressed air, and the Venturi system reduces air losses and ensures efficient operation.



Features:

Capacity range of 2,000 m³/h – 500,000 m³/h

High efficiency, suitable for all types of dust and oil vapors

Low pressure drop and energy savings

High dust retention capacity with bagged cages

Efficient dust cleaning with compressed air pulses

Easy maintenance and long-term use



Operating Principle: The Jet-Pulse Filter passes dusty gases through vertically arranged bagged cages, where dust accumulates on the surface of the bags. Compressed air pulses clean the bags and direct the dust to the bunker system. This ensures more efficient cleaning of the filter bags.
