TECHNICAL SPECIFICATIONS
Can be manufactured ın specıal dımensıons requested
Invertor controlled vıbro motors
Adjustable speed
Low maıntenance
Strong constructıon
Automatıc or manual roller
Can be controlled from the mıxer panel
Wıth aır bellows, the mold rıses to the requested amount
Optıonal flat plate system can be produced.
Low aır consumptıon
Easy to clean
Model | Dimensions |
TS1 | 1000x1000 mm |
TS2 | 1000x1500 mm |
TS3 | 1500x1500 mm |
TS4 | 1500x2000 mm |
TS5 | 2000x2000 mm |

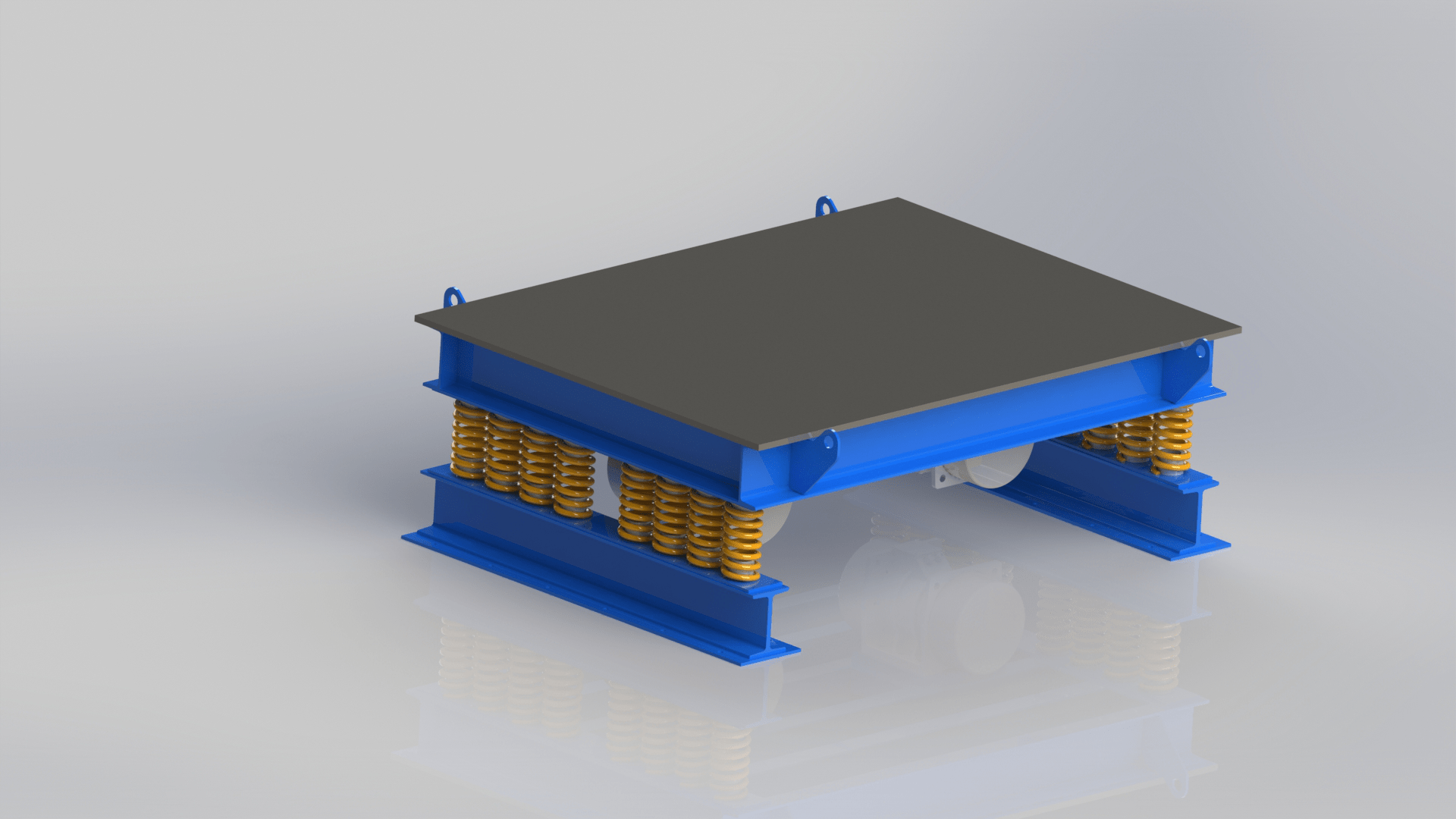

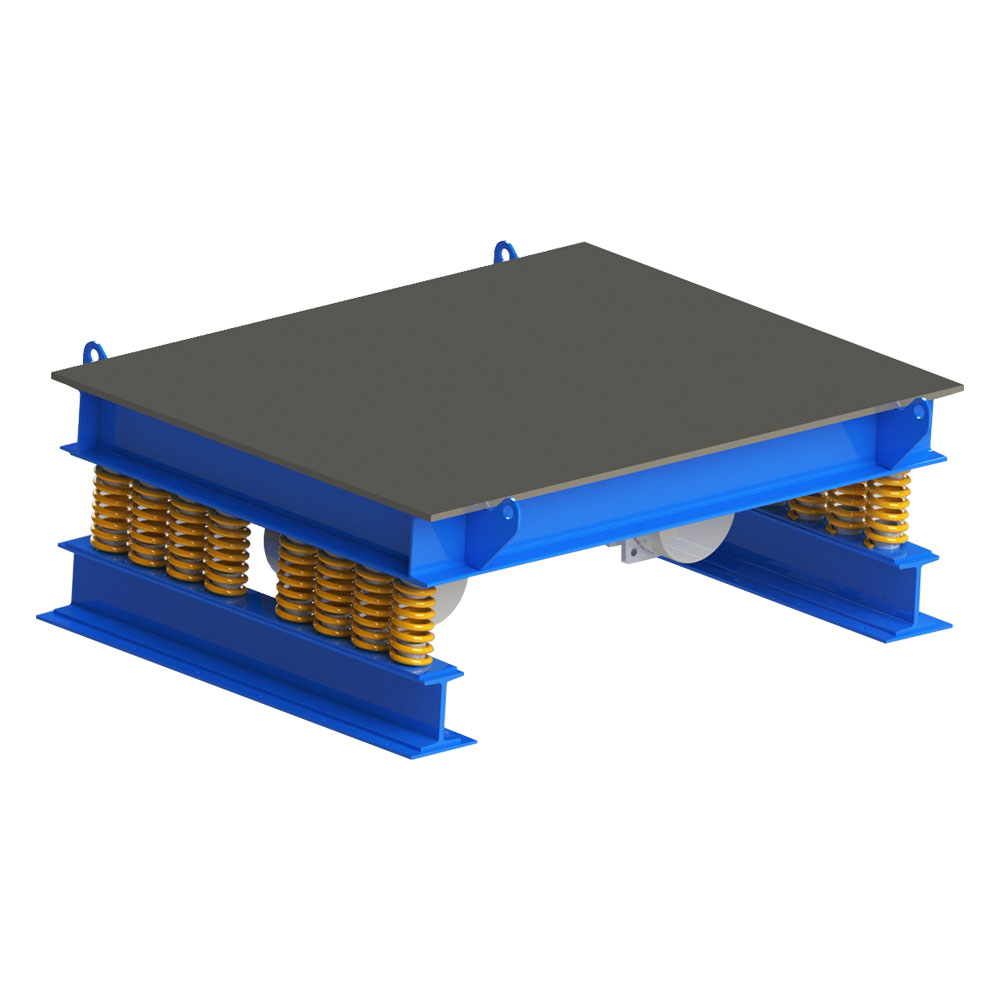

The TES-SAN Compaction Table is engineered for the reliable and precise compaction of foundry molds. Designed to suit various mold sizes, the table is powered by inverter-controlled vibro motors and offers both automatic and manual operation.
Working Principle:
The mold is rolled into position with the help of rollers on the table. The operator presses the start button before the compaction operation begins. Bellows are inflated with air, keeping the mold on the rollers, and the vibrators operate for the duration set on the timer inside the enclosure. After the vibrators stop, the bellows discharge the air and lower the mold onto the roller conveyor surface.
